SP1312 IP68 Waterproof Power Connector PA66 Threaded 18awg 3p Panel Mount

Name: SP1312 IP68 Waterproof Power Connector PA66 Threaded 18awg 3p Panel Mount
Brand: RIGOAL
Price: 1 USD

Brand Name : RIGOAL

Model Number : SP1312/P3

Certification : CE/ROHS/iso

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Mate model : sp1312

Number of contact : 3p

IP rating : IP68

Gender : female

Termination : Solder

Coupling : Threaded

Insert material : PA66+30%GF

Temperature range : -40°C--+105°C

Contact pin material : Copper silverplated/gold

Contact Now

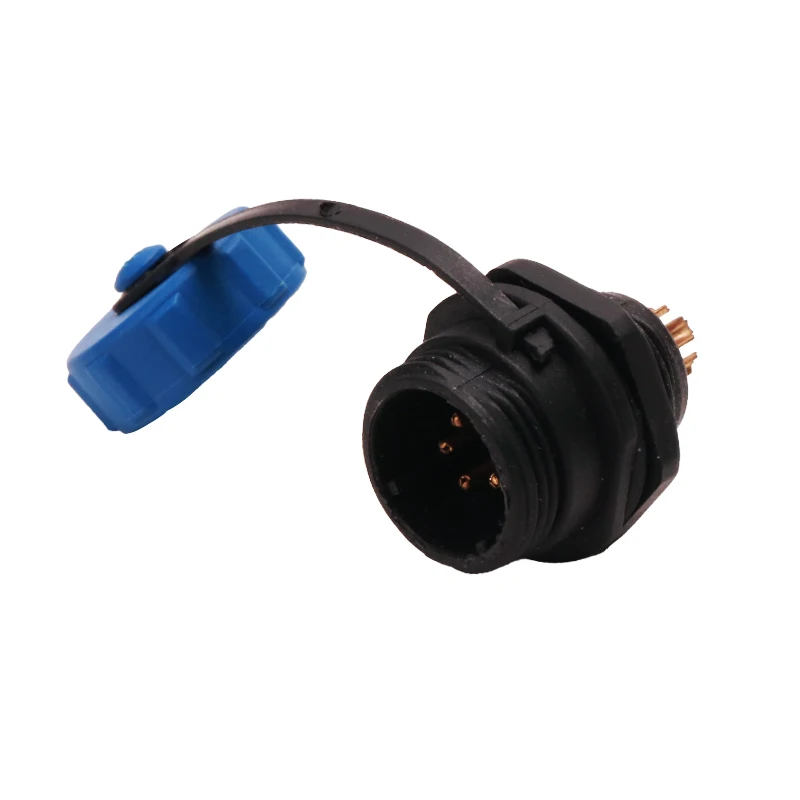

SP1312 IP68 Waterproof 3pin Panel Mount Connector Socket

Product Description

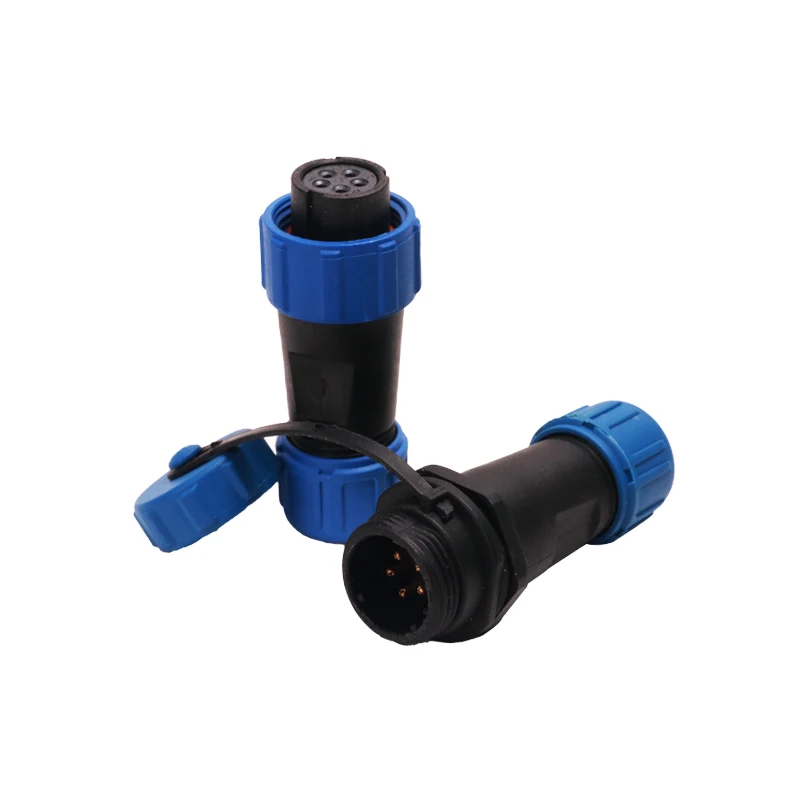

SP1312 IP68 Waterproof Power Connector PA66 Threaded 18awg 3p Panel Mount

2-9 Pole Cable Mount Connectors ,rear panel mounting sockets, IP68 rating,Threaded mating

SP series of threaded IP68 connectors are perfect for your application.This particular model has a bigger and
 stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version
 should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to
 panel-mount connections. With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All
 models are highly reliable and excellent quality.

Features & Benefits

Solder type
Have 2,3,4,5,6,7,9 poles for option.
Small bulk with light weight,easy and simple to operating
Temperature Range:-20°C~+80°C
This aviation plug is IP68 sealing type,can provide secure and connectivity in harsh environment.
If there is a require about dustproof and waterproof,this product can be used a lot.
Can do process with cable(18awg,20awg,22awg,) if you have requiements.
